LMK - LINEAR MOTION KIT FOR UNIVERSAL ROBOTS

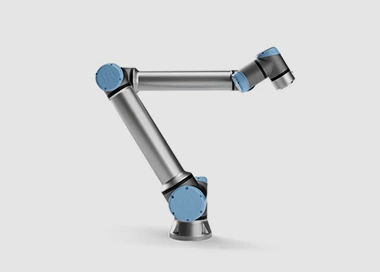

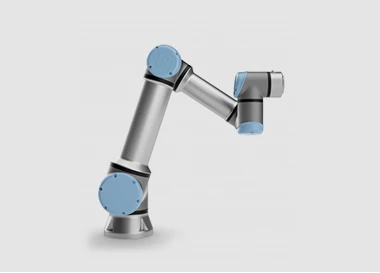

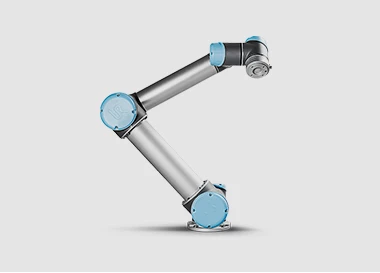

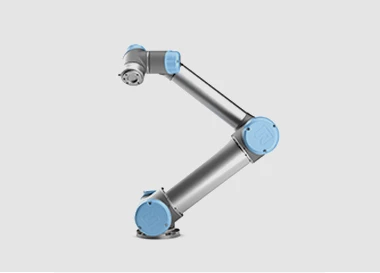

Cobotracks developed the “Linear Motion Kit (LMK)”. This kit enables the cobot models of Universal Robots (compatible with UR-3/5/10/16 and e-series) to move across a linear track and be controlled from the robot controller at the same time thanks to Cobotracks software. This kit is UR+ certified by Universal Robots, the market leader for cobots. This certification is a label that guarantees simple plug & play for Universal Robot customers if they also integrate the “LMK” into their application. A typical example of such an application is stacking multiple pallets.

The ever-growing market of cobots offers opportunities for deploying the “Linear Motion Kit”.

FEATURES

Robust industrial steel or aluminium design with SEW Servo Drive
High accuracy
100% cycle time with 100% load on robot
Customized solutions
Length up to 50m
Collision detection
UR Caps Software

Very easy to install and program
Infinite programming points
Adjustable speed
Movement robot during movement LMK

APPLICATIONS

EXTEND THE REACH OF YOUR COBOT

Multiple machine tendering

MULTIPLE PALLET PALLETISING

WELDING BIG PARTS

POLISHING & GLUING LARGE PARTS

LINEAR MOTION KIT INCLUDES

Axis with limit switches
Cable chain
SEW servo motor & drive
USB with URcap software
Planetary gearbox
Control box
Cables
English instruction manual
