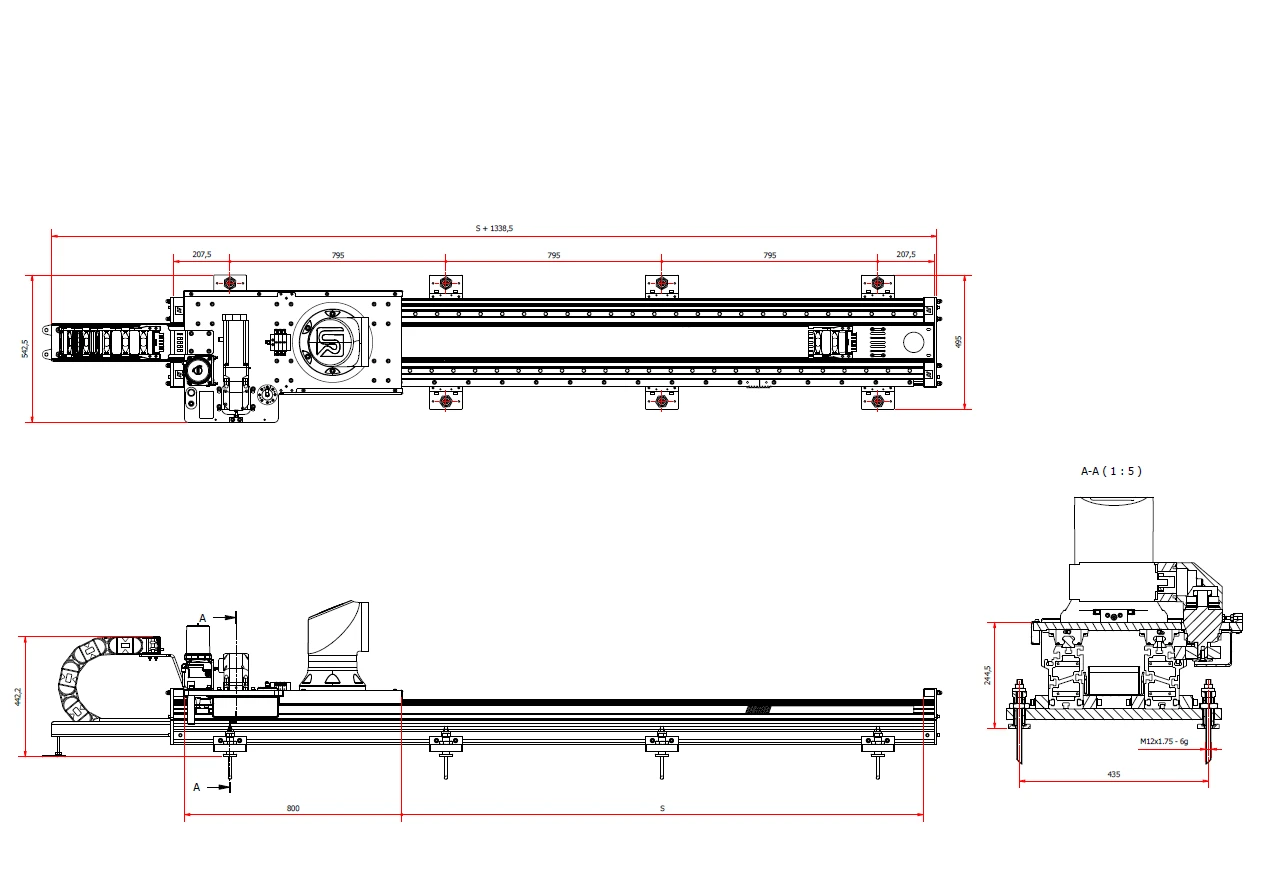

LMK30-ALU-RP Linear Motion Kit for Universal Robots UR30

The UR30 cobot is the second of four cobots in the Universal Robots e-family. With its light weight (20.6 kg), load capacity of 5 kg and range of 850 mm, this adjustable cobot handles medium-duty applications with ultimate flexibility.

Our “Linear Motion Kit” or “LMK30-ALU-RP” is the newest linear track that extends the range of the UR30/UR30e cobot by up to a maximum of 50 metres. Cobotracks guarantees a simple plug & play solution thanks to the unique UR software.

Learn more about LMK30-ALU-RP.

ROBOTTYPE
UR30/UR30e
MAX. STROKE [mm]
7000
MAX. SPEED [mm/sec]
250
DUTY CYCLE [mm]
100
REPEATABILITY [mm]
0.1
AMBIENT TEMPERATURE [°C]
-10 °C to 60°C
ELECTRICAL INPUT
380 V
BASE WEIGHT
135 kg
WEIGHT PER 100mm STROKE
8 kg
